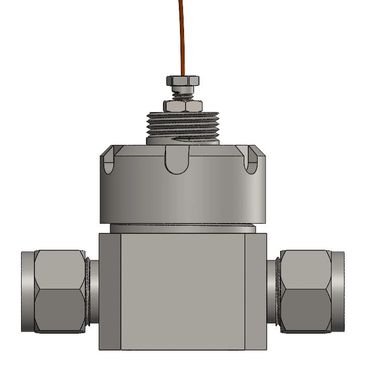

Standard Flow Meter Range

---

Positive Measurement has developed a standard range of flow meters to meet the demands of many flow measurement applications.

All PM flow meters are manufactured within a standard body size and comes in  Stainless Steel 316

Titanium Wetted Parts

1/2NPT and twin Ferrule connections

414 bar pressure rating

All of our flow meters have been designed to be supplied with Fluidwell displays for safe and hazardous areas.

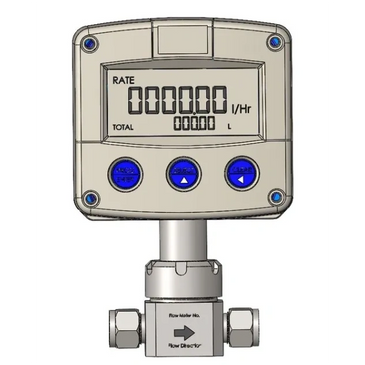

 The versatile F Series Display series is your best choice for flow monitoring applications. Its rugged construction, unique plug-and-play design and attractive pricing makes the F103 the perfect flow logger for flow measurement in Class I, Division 2 hazardous areas.

All of our flow meters have been designed to be supplied with Fluidwell displays for safe and hazardous areas

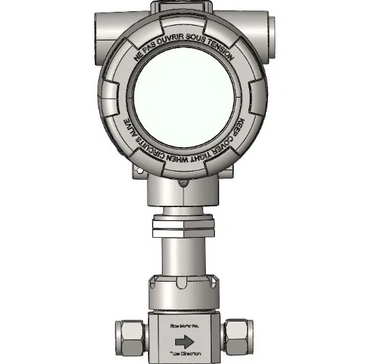

  The E series  is a popular model in the  range of Exd explosion proof displays.  The E-series is distinguished by its high quality manufacturing with stainless steel or Aluminium housing options.

R02

0.0011 to 0.3 l/min

R04

0.0024 to 0.5 l/min

R06

0.015 to 1.6 l/min

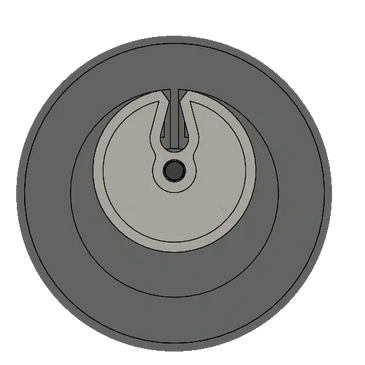

Rotary Piston has been used within the chemical injection industry for many years with its versatile application portfolio. It has unbeatable turndown capabilities and can measure all types of fluids from 5cSt to 500cSt

T02

0.002 to 0.25 l/min

T04

 0.01 to 1.25 l/min

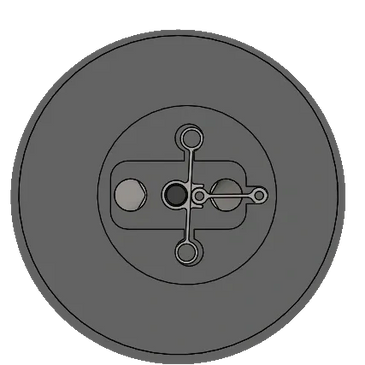

Twin Piston is the perfect measuring solutions for low flows and low viscosity fluids. It can meet the most demanding applications for ultra low flow rates and aggressive fluids down to 0.5cSt

G02

0.0015 to 2.5 l/min

G04

0.003 to  4.5 l/min

G06

 0.024 to 10 l/min

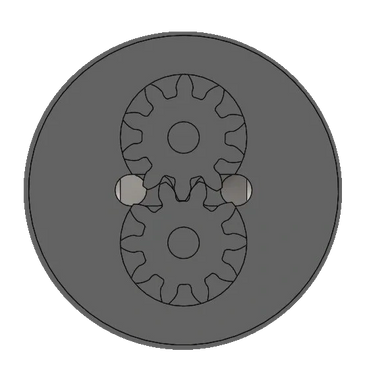

The classic gear solution is one of the most common flow measuring solutions on the market today, with it being highly reliable, cost effective and suitable for fluids down to 10cSt
